Lumenier QAV250 Mini FPV Quadcopter G10 Edition

Lumenier QAV250 Mini FPV Quadcopter G10 Edition

Produktbeschreibung

Kleiner FPV fähiger Quadrocopter der 250er Klasse. Ideal für aufregende FPV Rennen. Der Rahmen wird mit einem 3S LiPo Setup und 2206 2000Kv Motoren geflogen.

Details

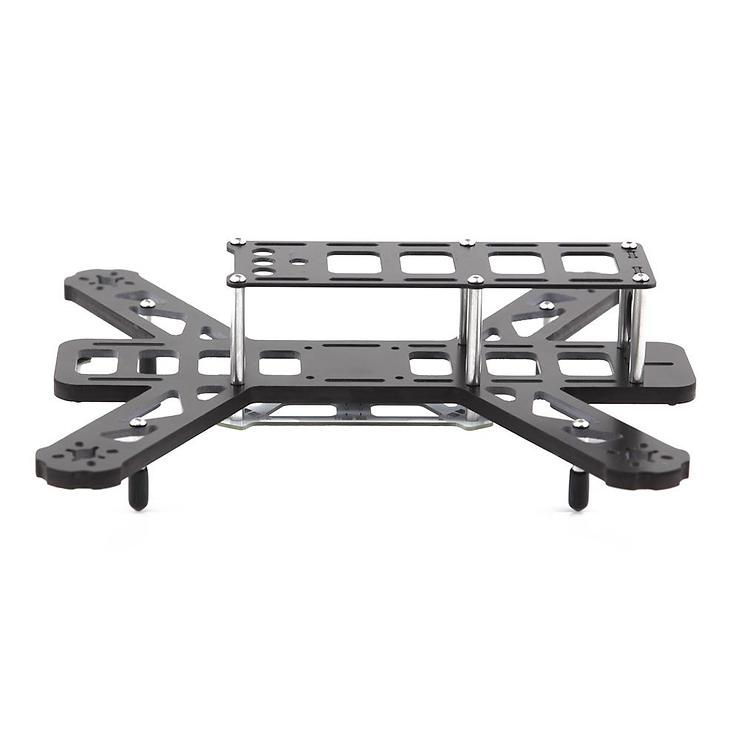

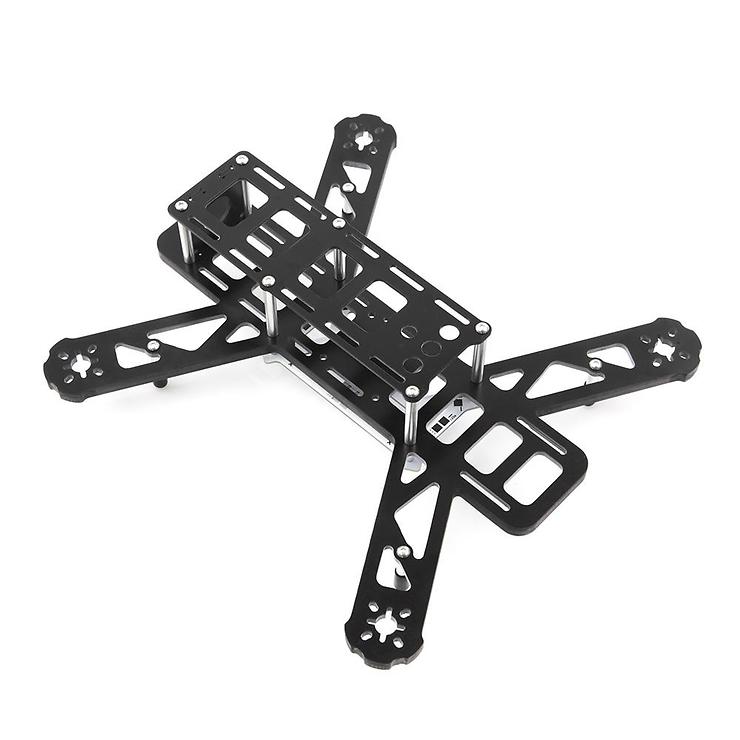

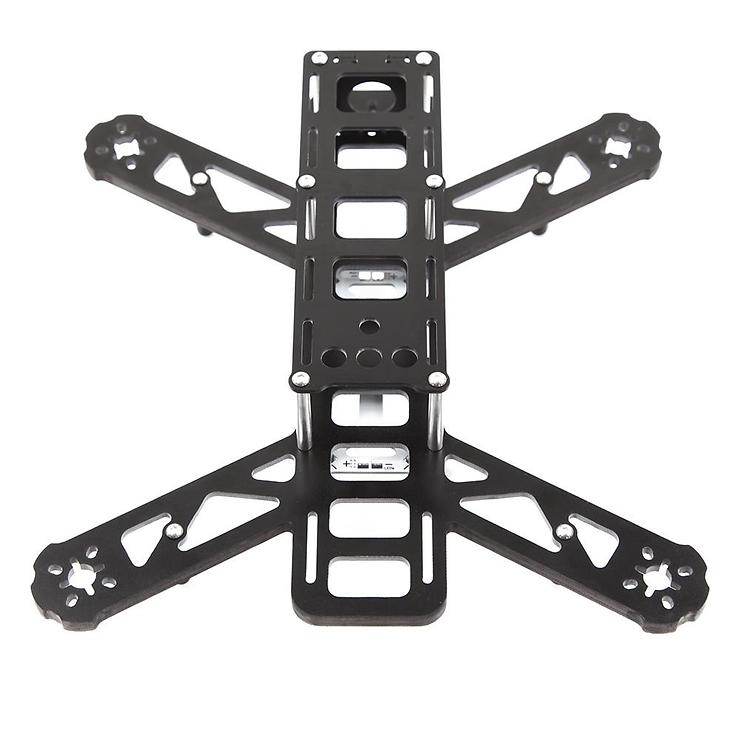

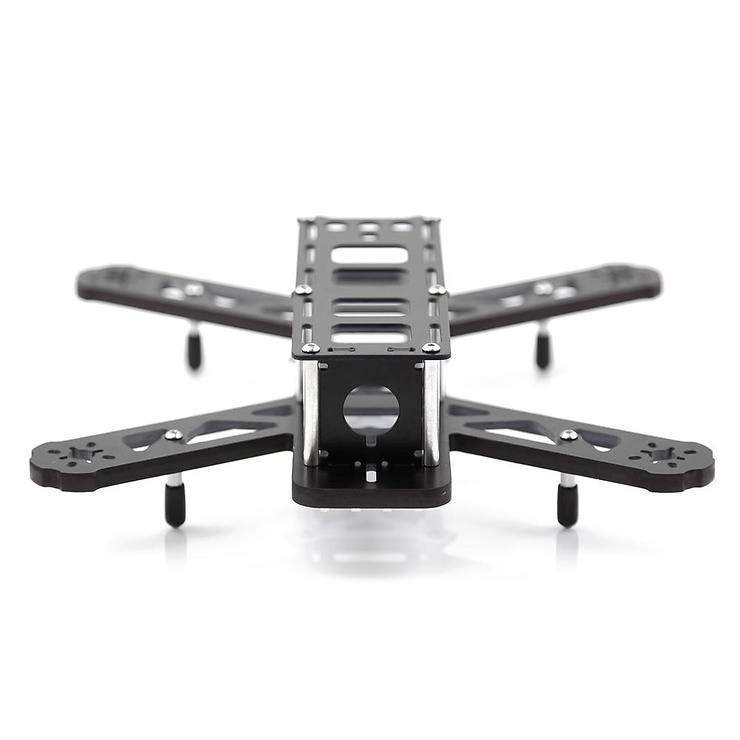

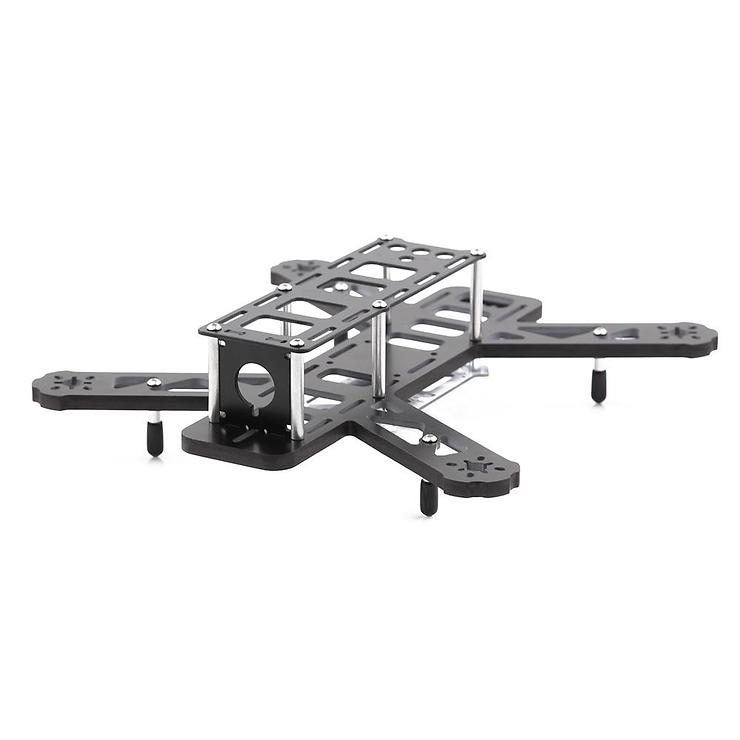

The Lumenier QAV250 V2 Mini FPV Quadcopter airframe is a small yet fully functional FPV quad deserving the QAV label. The QAV250 is a symmetric 250mm size airframe that accommodates 5" props. The 250mm is measured motor shaft to motor shaft diagonally.

The airframe is designed to support a 3s lipo setup and powerful Lumenier FX2206-13 2000kv motors.

Features

• V2 Features

New motor mounting holes, more options for different bolt patterns
Thicker G10 material for the motor mounting plate
"Bumpers" on the end of the arms to protect the motor during a crash
Flight controller cover plate includes cutouts for SMA connectors and adapters for the video transmitter.

• A 2.5D CNC-ed G10 unibody main frame board
• Integrated power distribution board for ESCs and FPV flight electronics
• 2 integrated LED strips (white and red) to aid LOS orientation
• Easy Lipo Access (suggested Lipo is a Lumenier 3s 1300mah)
• Support for 32mm board cams as well as cams in cases with mounting bracket
• Support for HD camera (such as the Mobius)
• Integrated and included Landing Gear reminiscent of the QAV500 CF Landing Gear

Weight

• Airframe: 170g (with PDB, LED boards, landing gear and hardware)
• AUW: The QAV250 is flown with an AUW of around 540g (includes all flight electronics, FPV gear and Mobius HD camera).

Vibration Free Video

Like all QAV airframes, the QAV250 produces vibration and jello free HD recordings. We achieve this vibration free performance without the use of Lumenier's clean/dirty frame separation that is utilized in larger QAV airframes such as the QAV400, QAV500, and QAV540G. This simplifies the small QAV250 airframe, making it lighter, reduces parts count, and failure points.

Includes

• 1x QAV250 G10 airframe, board camera mount, and hardware
• 1x Power distribution board
• 2x LED boards (1 red, 1 white)
• 1x set of aluminum landing gear and vinyl feet
• 5" Anti-Vibration neoprene tape
• 1x Lumenier lipo strap

Features:

• Ein 2.5mm CNC gefräster G10 Unibody Rahmen
• Integrierte Stromverteilung für ESCs und FPV Flugelektronik
• 2 integrierte LED-Streifen (weiß und rot), um die Orientierung beim Sichtflug zu verbessern
• Einfach Lipo Access (Lipo 3S 1200-1300mAh )
• Montageplatte für 32 mm FPV Kameras
• Platz für eine Mobius HD Kamera
• Gewicht: 170g
