Fatshark / ImmersionRC SpiroNet 5G8 Patch FPV Antenne 13dBi RHCP

Name: Fatshark / ImmersionRC SpiroNet 5G8 Patch FPV Antenne 13dBi RHCP
Brand: ImmersionRC
SKU: IRC-SPNP5G8
Price: 84.00 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

Fatshark / ImmersionRC SpiroNet 5G8 Patch FPV Antenne 13dBi RHCP - Thumbnail 1

Fatshark / ImmersionRC SpiroNet 5G8 Patch FPV Antenne 13dBi RHCP - Thumbnail 2

Der Artikel ist nicht mehr erhältlich.

1 Bewertung

84,00 € *

zur Produktbeschreibung Frage zum Artikel?

Fatshark / ImmersionRC SpiroNet 5G8 Patch FPV Antenne 13dBi RHCP

Produktbeschreibung

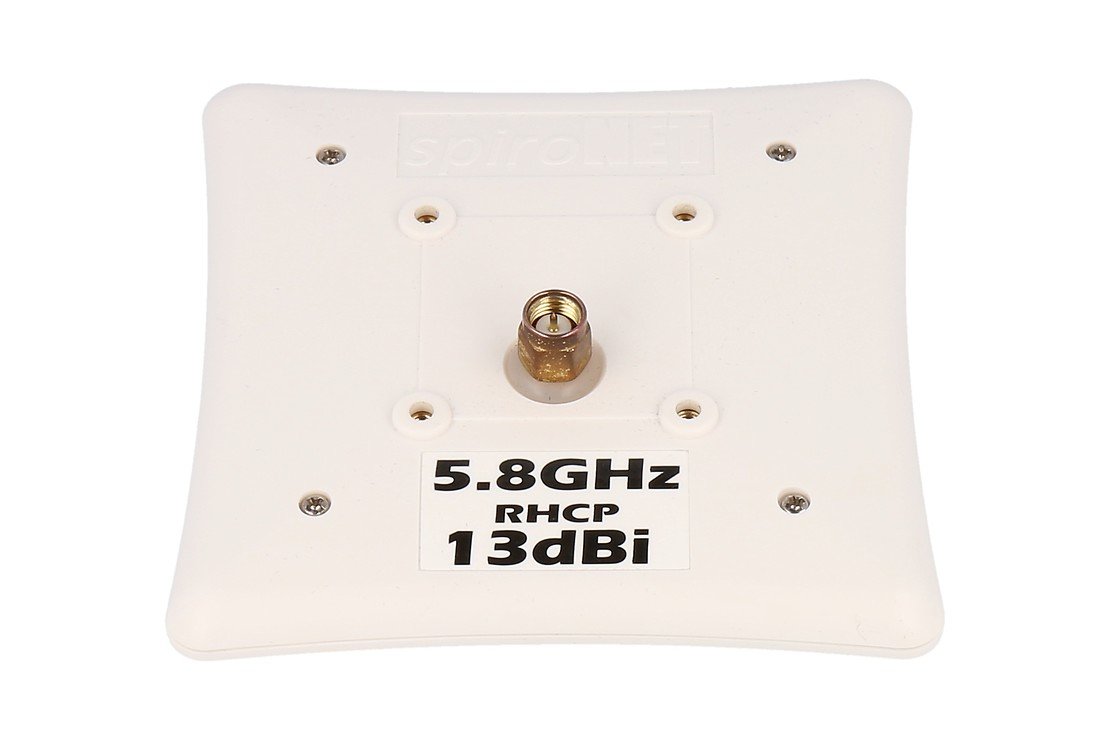

This 5.8GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.

This antenna will breathe new life into the CE-Legal 25mW systems, allowing multi-km range with ease. For 600mW systems, its time to start worrying about the range of the control link, since with a combination of this antenna, and a spiroNET omni, the video range can greatly exceed the control range of most 2.4GHz radios.

Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.

SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date.
Right-Hand circular polarization
5.8GHz ISM Band
13dBi gain
Beam width 35 degrees (H + V)
F/B Ratio 26dB
VSWR < 1.5:1 (5740 - 5860MHz)
Impedance 50ohms

Bestellnummer	IRC-SPNP5G8
EAN	4260331045194
Hersteller	ImmersionRC

1 Kundenmeinungen

5.00

Aug 2014

maschke

leider muß man den kopf immer in richtung des modells drehen,hinterm rücken geht dann kaum noch etwas. (das ganze bei erlaubten 25m/w ). bin noch am testen waas für diese antenne die optimalste lösung ist !!! getestet 25m/w reichweite 790m bei 10m flughöhe direkte sicht!
