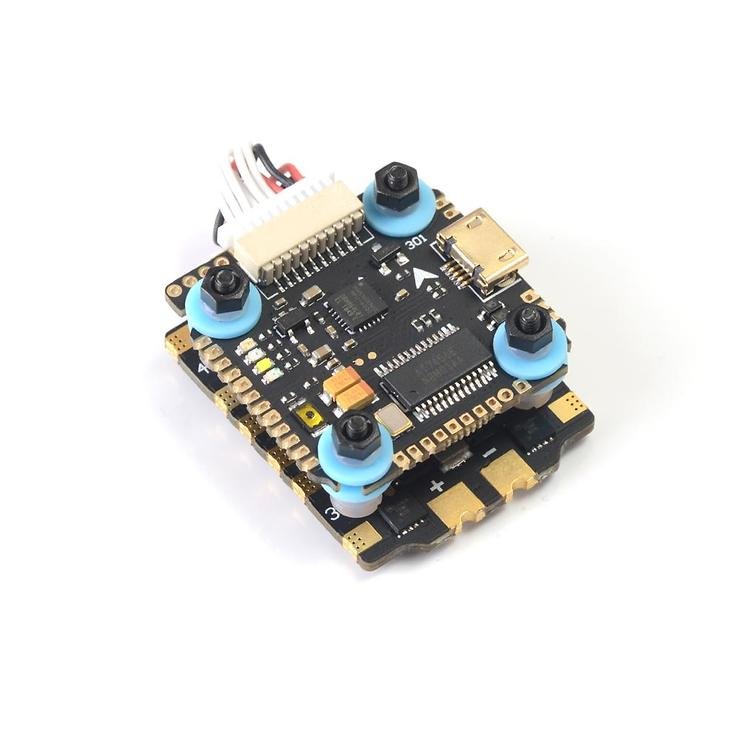

Diatone Mamba F722 Mini Stack 20x20 2-6S FC und ESC
Note：Because STM32F722 heat large, please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.
FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX2
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
BEC: 5V 2A (Max 3A)
ESC Specifications
INPUT VOLTAGE: 2~6S Lipo (7.4V~25V)
CONTINUE CURRENT: 30A×4
BURST CURRENT: 35A (10S)
BEC: NO SOFT: Dshot300/600/1200
MOUNTING: 20mm/M2
Supply : Panasonic High Frequency 470uF/35V
FC Firmware
BetaFlight
Target: MAMBA F722
Mounting: 20×20mm,2
Dimensions: 30×36.5×13.5mm
Weight: 11g
| Lieferumfang |
|
|---|---|
| Bestellnummer | DIA-MB-STACK-F722MINI-306 |
| EAN | 4260449986129 |
| Hersteller | Diatone |
