Produktbeschreibung

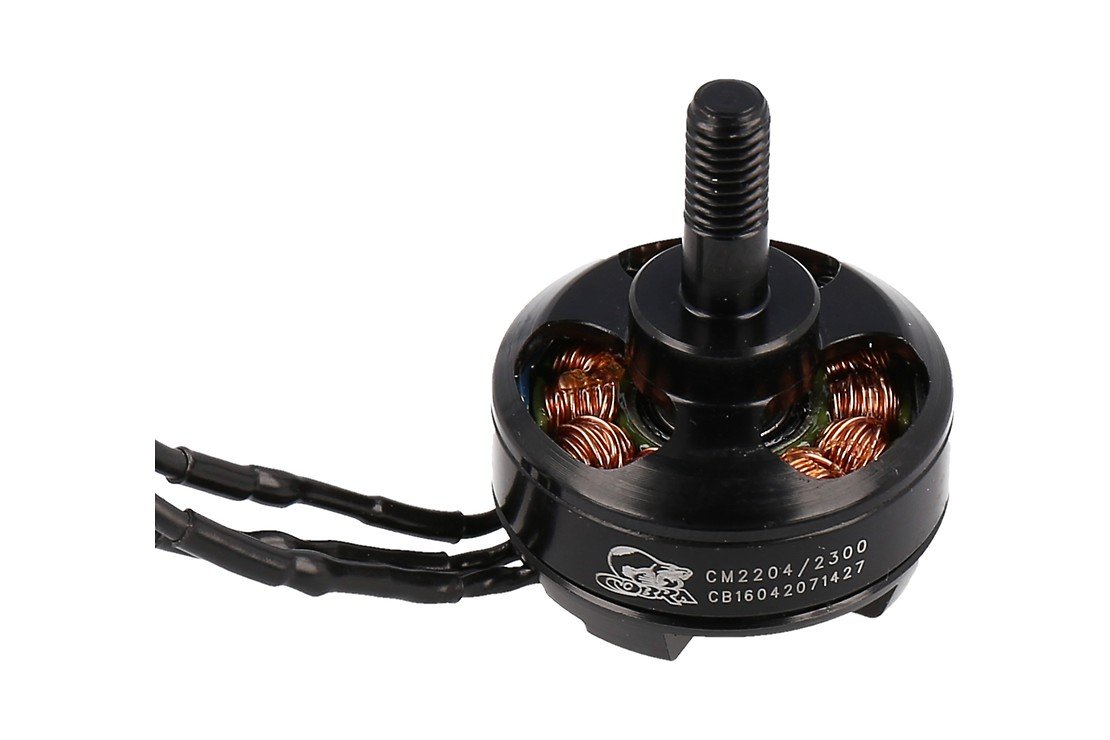

Cobra CM-2204/28 Motor Specifications;

Stator Diameter    22.0 mm (0.866 in)
Stator Thickness    4.0 mm (0.157 in)
Number of Stator Slots    12
Number of Magnet Poles    14
Motor Wind    28 Turn Delta
Motor Kv Value    2300 RPM per Volt
No Load Current (Io)    0.66 Amps @ 8 Volts
Motor Resistance (Rm) per Phase    0.126 Ohms
Motor Resistance (Rm) Phase to Phase    0.084 Ohms
Maximum Continuous Current    17 Amps
Max Continuous Power (2-cell Li-Po)    125 Watts
Max Continuous Power (3-cell Li-Po)    190 Watts
Motor Weight    24.6 grams (0.87 oz.)
Outside Diameter    27.0 mm (1.063 in.)
Motor Shaft Diameter    3.00 mm (0.118 in.)
Prop Shaft Diameter    5.00 mm (0.197 in.)
Motor Body Length    14.2 mm (0.559 in.)
Overall Shaft Length    32.5 mm (1.146 in.)
Motor Timing    5-10 degrees
PWM Frequency    8 KHz

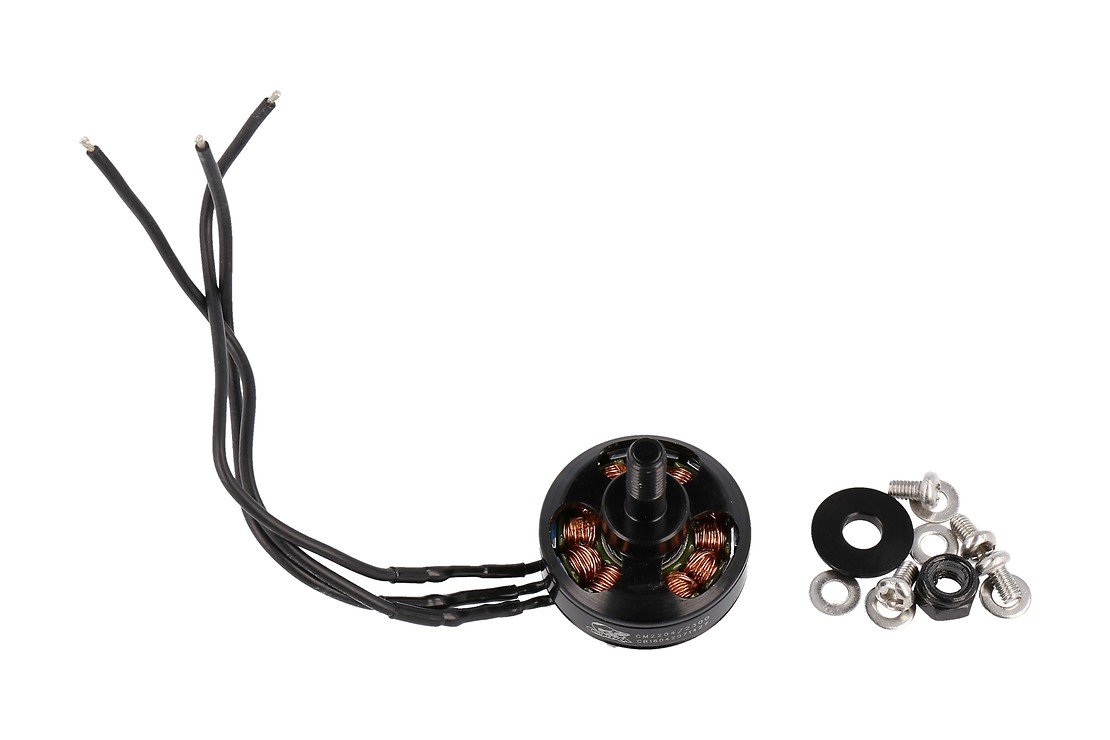

Package Content:

Four M3x5mm Motor Mount Screws
Four M3 Flat Washers
Machined Aluminum Prop Washer
Locking Prop Nut with Nylon Insert

Bestellnummer	COB-2204-2300
EAN	4260449971149
Hersteller	Cobra Motors
